10L0L Golf Cart LED Headlights and Tail Light Kits Fit Yamaha G29 YDR Drive 2007up with Universal Deluxe Light Upgrade Kit, with Turn Signals Switch Horn Brake Lights Harness

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product Description

What you need to know before installing

Please check the product according to the following steps as the first thing after you receive the car light kit. After all parts of the car light work well, then install it on the golf cart:

After installing the wire, connect the power supply (must be 12 voltage ,and make sure the positive and negative poles is correct , )
Turn on the emergency switch ( the red one), and the turn signal light should flash before and after the test. –to check the control box and the connection line to work well
Turn off emergency switch and spin the turn signal switch to ON, the headlights and taillights should be on,–to check the head light taillights and the signal switch are all work well .
The brake lever switch( signal switch) turns to the left and right, the corresponding left and right signal lights flash—to check controller and signal switch is work well
Step on the pedal and the tail light will brighten, release it and go off.—To check the brake pedal

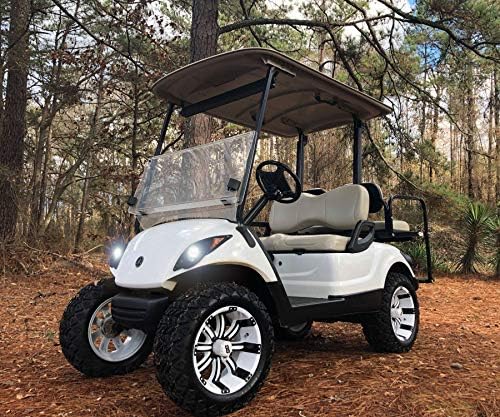

Whether you are lighting the path at the end of a long round on the course or for an evening ride around the neighborhood, these LED Headlights can light the way!

Fits YAMAHA DRIVE G29 LED Deluxe Street Legal Light Kit 2007 Up. The newly designed LED’s use far less power, provide a brighter and whiter light and last longer than regular lights.

Matters needing attention during installation

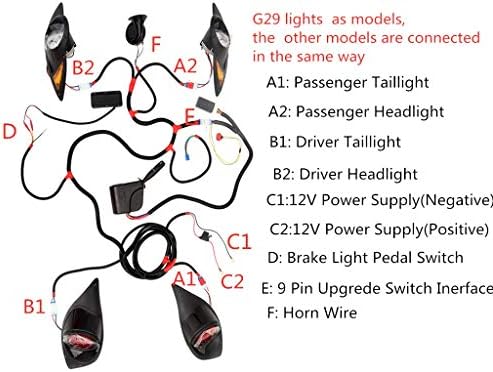

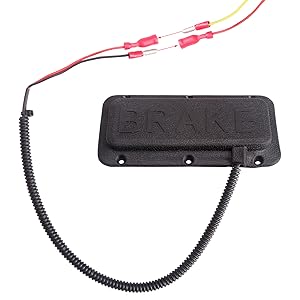

Connections on Break Light to Harness

The harness there are 3 wires, but we only need to connect the yewllow and red one with the break light pedal.

(THE BLACK WIRE IS REDUNDANT )

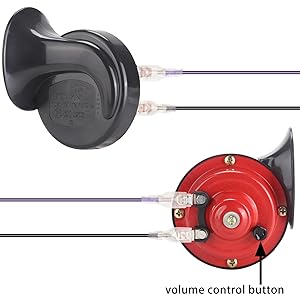

About The Horn

If the horn sound is too loud or too small, you can adjust this place to make the sound louder or smaller

About the Golf Cart Voltage

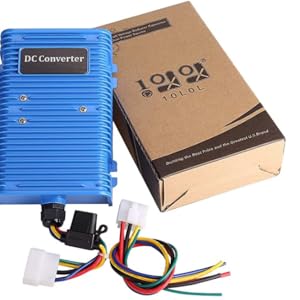

All of our 10L0L LED light kit MUST be work in 12V Voltage, if your golf cart is 48V or 36V, you have to need voltage reducer ( Our light kit did not included)

10L0L Golf Cart LED Headlight and LED Taillight with deluxe light upgrade kitallows you to extend to brake, hazard,horn and turn signal function.The light kit included the parts as follow:

2x LED Head Lights
2x LED Tail Lights
1x Main upgraded wiring harness
1x Horn
1x Wiring Harness w/ Switch
1x Steering wheel column cover
1x Brake light pedal
1 x Control switch with wiring harness
Stainless Steel Mounting Screws

You May Like

Date First Available‏:‎January 15, 2020
ASIN‏:‎B083W4WTSP

Golf cart universal deluxe light upgrade kit fit for 2007-up Yamaha G29 Gas or Electric Carts ,If your golf cart is 48v or 36v,Pls note that you MUST need a 48v-12v or 36v-12v voltage reducer.OUR LIGHT KIT NOT INCLUDED REDUCER.
Package included : golf cart LED light kit AND golf cart universal deluxe light upgrade kit. 2x LED head lights, 2xLED tail lights, turn signals and switch, horn, brake lights, harness hardware and instruction.
Golf cart LED light kits come with universal deluxe light upgrade kit ,this deluxe kit included the up-gradable harness, that allows you to extend to brake, hazard,horn and turn signal function.there are front turn signals as well as rear turn signals, hazard flasher, head lights and brake lights.(AS 10L0L Golf cart LED headlight and tail light kit are all LED light that are bright enough, so the turn singal does NOT with the function of high beam. )
Living in a golf cart community and using cart daily to get around, a suitable set of car lights is very necessary for your golf cart ,you will get a great night vision and be safe after your golf cart install bright led golf cart lights.
Easy to install: Yamaha LED light kit comes with detail instruction and easy to install on golf cart, It will takes about 2-3 hours to install.
