10L0L Universal Golf Cart Turn Signal Kit with Horn Brake Light Switch, 9-Pin Plug Upgrade Wiring Harness – 12V

Make your cart street legal, and will have turn signal, horn, hazard flashing, brake lights etc.
The kit is connected to the light unit via a 9-pin plug. If your original or OEM light wiring harness is not a 9-pin plug, refer to the wiring diagram. It is not recommended to purchase this lamp kit if you confirm that you are not able to modify the line yourself.

9-Pin plug Inerface:
Puple: Horn+
White: Rear left turn lamp
Yellow: Foot step-
Brown: Rear right turn lamp
Blue: Headlight and rear light
Black: Power V-
Red: Power V+
Green: Front Right turn lamp
Gray: Front left turn lamp

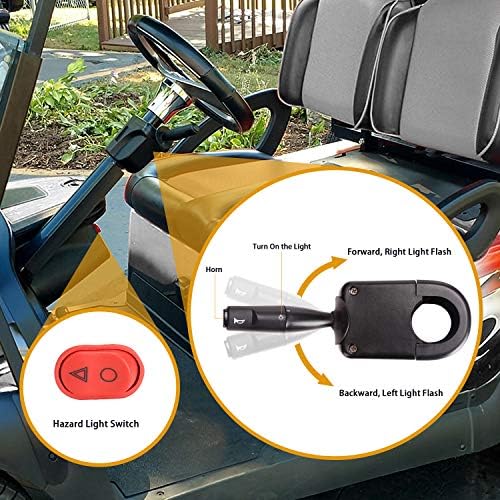

Upgrade kit make your golf cart has turn signal, horn, hazard flashing, brake lights functions, fits all golf carts with 9-pin plug light wiring harness

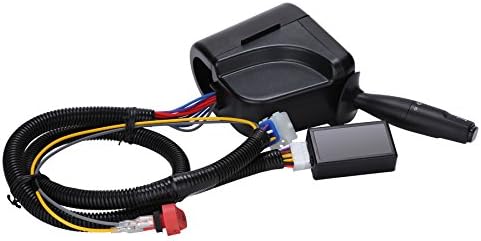

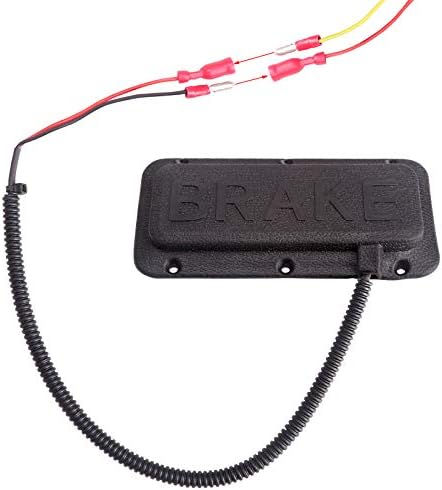

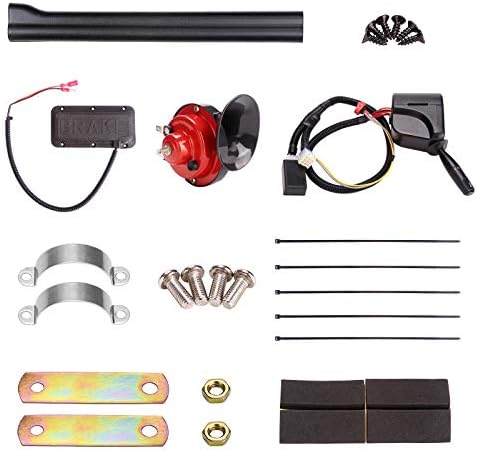

Kit includes: turn signal lever with headlight/horn switch & 9-Pin wiring harness, hazard flashing switch, controller box, steering column cover, brake pad, horn, clamps and screw set, wiring diagram instruction

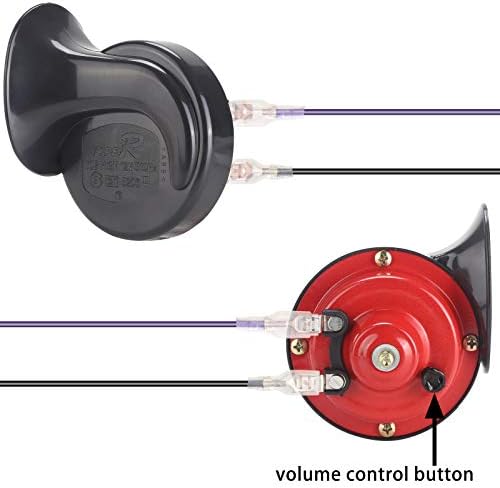

12 Volt operation(voltage reducer is required on 36v/48v), the black button on horns backside is for volume control could adjust it when power connected
The kit is connected to the light unit via a 9-pin plug. If your original or OEM light wiring harness is not a 9-pin plug, refer to the wiring diagram on the left. It is not recommended to purchase this lamp kit if you confirm that you are not able to modify the line yourself
100% Satisfaction guarantee, 1 year refund or replacement
